HYD-320 CNC Spring Machine with 0.4-2.0mm Wire Size 3 Axes Servo Motors and 1000m/min Max Wire Speed

جزئیات محصول:

محل منبع:	گوانگدونگ ، چین
نام تجاری:	HYD

پرداخت:

مقدار حداقل تعداد سفارش:	1

مخاطب

توضیحات محصول جزئیات

وزن:	880 کیلوگرم	ولتاژ:	380 ولت
قدرت:	5.8 کیلووات	اندازه سیم:	0.4-2.0 میلی متر
موتورهای سروو:	3 محور	حداکثر سرعت سیم:	1000 متر در دقیقه
حداکثر قطر خارج:	45 میلی متر	موتور تغذیه سیم:	2.7 کیلو وات
موتور بادامک:	2.7 کیلو وات	موتور پیچ:	1.0 کیلو وات
منبع تغذیه:	220 ولت 3P 50/60 هرتز	وزن ماشین:	880 کیلوگرم
اندازه ماشین:	9009501600 میلی متر	ظرفیت دفع کننده:	60 کیلوگرم
سیستم کنترل:	1 ست
برجسته کردن:	0.4-2.0mm Wire Size CNC Spring Machine,3 Axes Servo Motors Compression Spring Machine,1000m/min Max Wire Speed Spring Coiling Machine , 3 Axes Servo Motors Compression Spring Machine , 1000m/min Max Wire Speed Spring Coiling Machine

HYD-320 Compression Spring Machine 0.4-2.0mm Spring Coiling Machine

Product Specifications

Model	HYD-320
Wire Size	0.4-2.0mm
Servo Motors	3 axes
Max Wire Feed	Unlimited
Max Outside Diameter	45mm
Wire Feed Speed	1000m/min
Control System	1SET
Decoiler	60KG
Wire Feed Motor	2.7KW
Cam Motor	2.7KW
Pitch Motor	1.0KW
Power Supply	220V3P 50/60HZ
Machine Weight	880KG
Machine Size	9009501600mm

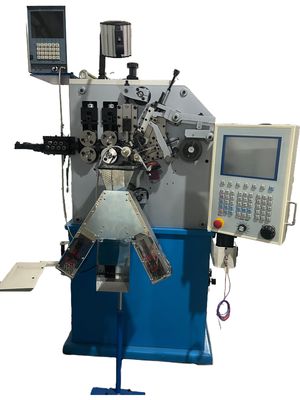

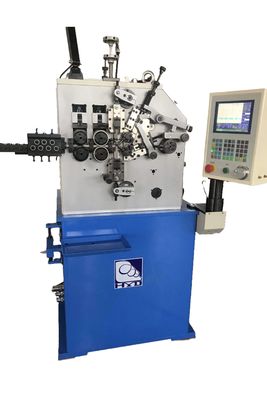

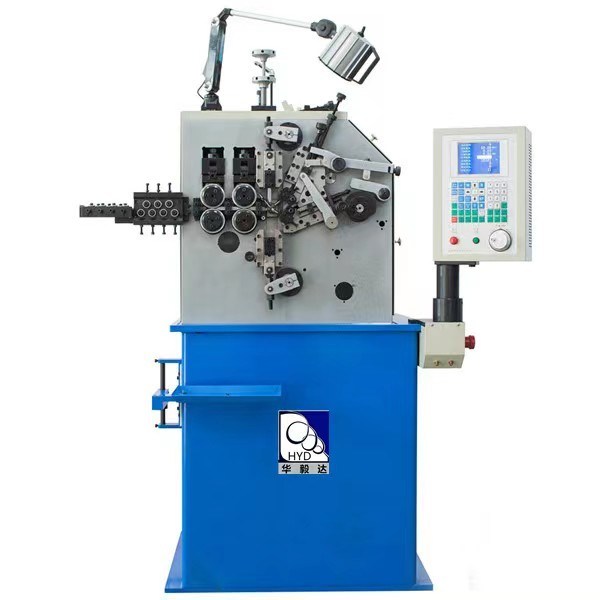

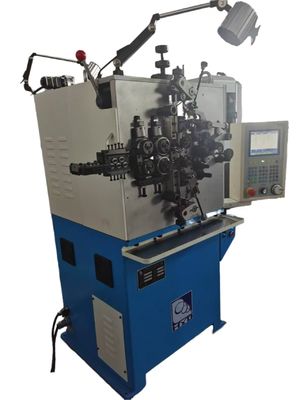

Product Images

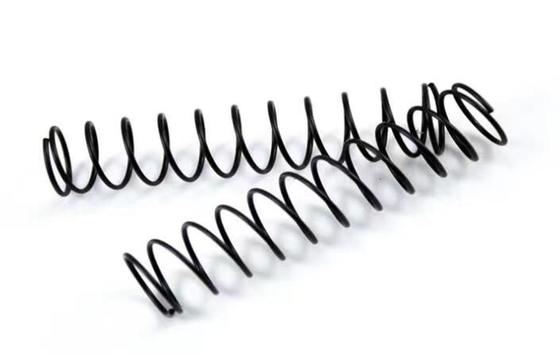

Application Scenarios

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
