Multi-Function CNC Spring Machine with 110m/min Max Wire Speed 1000 Program Storage Volume and 9.35kW Power

جزئیات محصول:

محل منبع:	گوانگدونگ ، چین
نام تجاری:	HYD

پرداخت:

مقدار حداقل تعداد سفارش:	1

مخاطب

توضیحات محصول جزئیات

وزن:	900 کیلوگرم	ولتاژ:	380 ولت
قدرت:	9.35 کيلو وات	اندازه سیم:	0.3-2.5 میلی متر
موتورهای سروو:	10 محور	حداکثر سرعت سیم:	110 متر در دقیقه
ذخیره سازی برنامه:	1000	راه آهن:	80 میلی متر
غلتک:	2 جفت	خطای حداکثر:	0.03 پوند (طول)
مارک موتور:	سانيو	کوتاهترین طول فرشته:	4 بار قطر سیم
منبع تغذیه:	380 ولت ± 10 درصد 50 هرتز	دفع کننده:	300 کیلوگرم
اندازه ماشین:	L1700W1150H1700 میلی متر
برجسته کردن:	110m/min Max Wire Speed CNC Spring Machine,1000 Program Storage Volume Computer Spring Machine,9.35kW Power Spring Coiling Machine , 1000 Program Storage Volume Computer Spring Machine , 9.35kW Power Spring Coiling Machine

Precision Computer Spring Manufacturing Coiling Machine

Multi-Function Spring Forming Equipment

Product Specifications

Model	HYD-25T-11A	HYD-25T-12A
Wire Size	0.3-2.5mm	0.3-2.5mm
Servo Motors	10 axes	12 axes
Lead Rail	tineraries 80mm	tineraries 80mm
Wire Feed Roller	2 Pairs	4 Pairs
Maximum error	±0.03(Length)	±0.03(Length)
Max Wire Feed Speed	110m/min	110m/min
Motor Brand	Sanyo	Sanyo
Shortest Angel Length	4 Times Wire Diameter	4 Times Wire Diameter
Power Supply	380V±10%V50Hz	380V±10%V50Hz

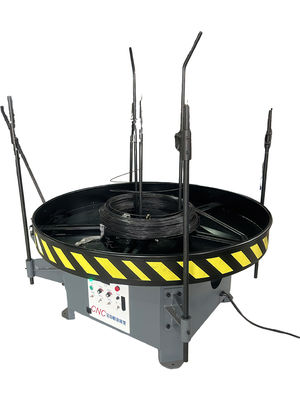

Decoiler	300KG	500KG
Machine Dimension	1000KG	1300KG
Machine Size	L1700W1150H1700MM	L1700W1150H1700MM

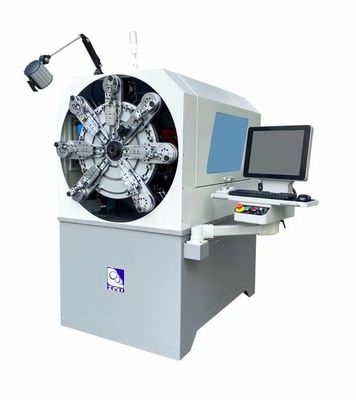

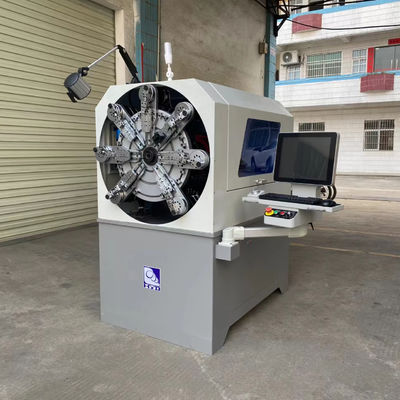

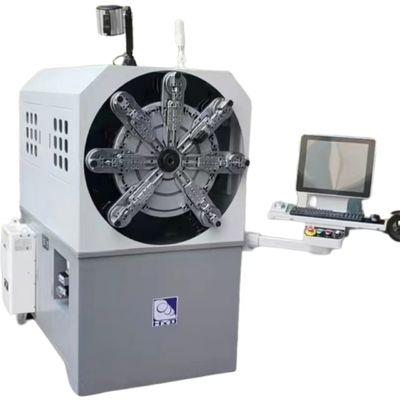

Product Images

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
